Laboratory Doors for Chemical, Biotech and Testing Facilities

Ⅰ. Why Laboratory Doors Are Critical Infrastructure, Not Just Entryways

In modern research and industrial facilities, door assemblies are far more than simple physical partitions—they are critical nodes governing airflow organization, cross-contamination control, and regulatory audit readiness. Many laboratories experience recurring issues post-commissioning, such as pressure differential fluctuations, HVAC system overload, or microbial excursions. The root cause often traces back to a mismatch between initial laboratory doors selection and actual operational conditions.

This guide is designed for laboratory EPC contractors, biotech facility managers, and procurement leads at third-party testing institutions. We provide an engineering-parameter-driven selection framework, systematically breaking down five core dimensions: materials, vision panels, corrosion resistance, sealing, and cleanability. Our goal is to help you establish precise procurement specifications during project planning or expansion phases—avoiding costly retrofits and re-validation triggered by underperforming door systems.

Ⅱ. Scenario-Specific Requirements: Chemical vs. Biotech vs. Testing Facilities

Risk exposure profiles and process workflows vary dramatically across laboratory types. Door selection must follow a "scenario-driven specification" engineering logic.

2.1 Chemical Laboratories

Chemical synthesis and analysis zones face prolonged exposure to strong acids, alkalis, organic solvent vapors, and localized high temperatures. Fire safety and leak prevention are paramount.

• Core Requirements: chemical resistant lab doors architecture is mandatory, with panel materials backed by explicit MSDS compatibility documentation for target chemical media.
• Structural Specifications: Door cores must incorporate fire-rated insulation (UL/EN certified), accompanied by fire rated lab doors certification labels. Heavy-duty hinges and drip-proof thresholds are standard to prevent corrosive liquids from migrating into equipment cavities via door seams.

2.2 Biotechnology & GMP Facilities

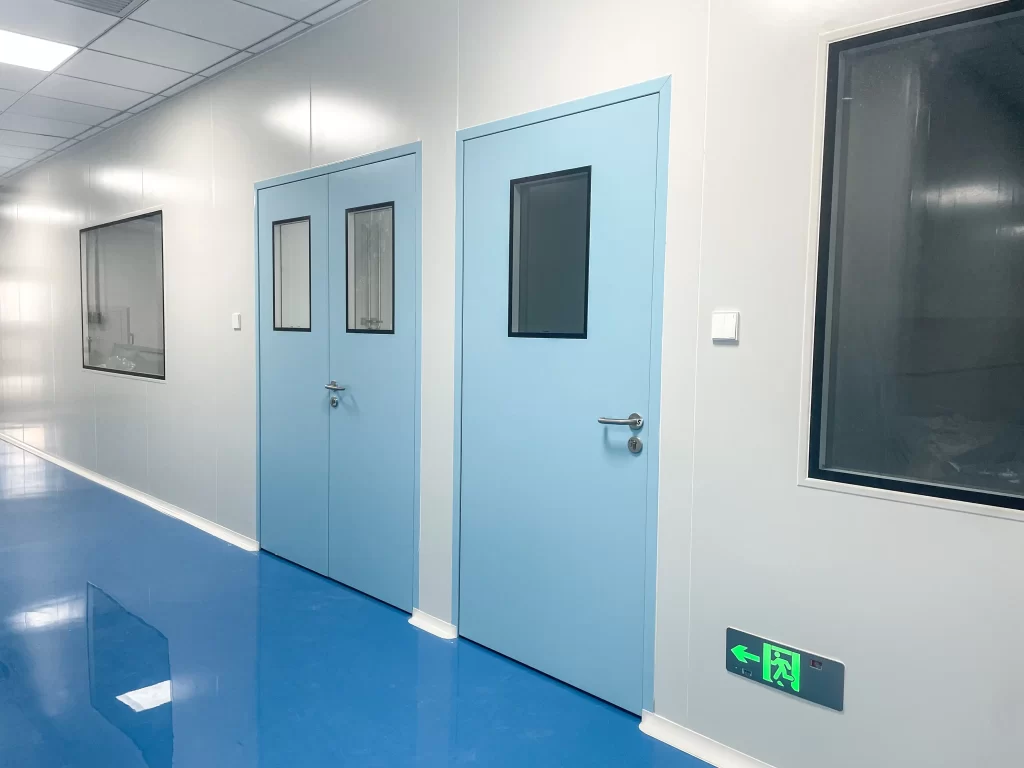

Biopharmaceutical and cell therapy facilities impose stringent demands on aerosol containment, cleanliness classification (ISO Class 7/8), and pressure gradient maintenance.

• Core Requirements: Surfaces must feature seamless, full-penetration welds to eliminate microbial harborage points. Standard configurations combine cleanroom doors with hermetic doors architecture to minimize airflow disturbance during dynamic door operation.
• System Integration: Doors must accommodate BMS interface provisions for data linkage with pressure sensors, pass-through chambers, and environmental monitoring systems.

2.3 Testing & Analytical Facilities

Third-party testing and R&D institutions commonly contend with high-frequency personnel traffic, large analytical instrument movement, and co-located multi-hazard zones.

• Core Requirements: Impact-resistant panels (scratch-resistant HPL or composite metal) and wide-view monitoring windows are essential. Hardware must support high-cycle operation (≥500,000 actuation cycles).
• Operational Balance: Modular replacement design enables rapid swap-out of localized panels or seals, minimizing downtime costs.

Ⅲ. Core Selection Criteria: Matching Technical Specifications to Laboratory Demands

Procurement decisions must shift from "aesthetic matching" to "parameter validation." The following four dimensions serve as the primary benchmarks for evaluating laboratory doors performance.

3.1 Material Selection & Corrosion Resistance

• Stainless Steel Grading Logic: Grade 304 is suitable for routine dry zones; however, environments involving chlorides, high salinity, strong oxidizers, or VHP decontamination cycles require upgrading to stainless steel laboratory doors 316L. The molybdenum (Mo) content (2–3%) in 316L significantly enhances pitting corrosion resistance.
• Composite Panel Alternatives: HPL high-pressure laminates, phenolic resin boards, or GRP fiberglass offer superior chemical inertness in specific acid/alkali environments—but edge-sealing craftsmanship must be verified to meet moisture-delamination requirements.
• Surface Finishing: Electrostatic powder coating thickness should be ≥60μm, supplemented by passivation or nano-anti-fouling topcoats to withstand long-term exposure to sodium hypochlorite, peracetic acid, and other aggressive disinfectants.

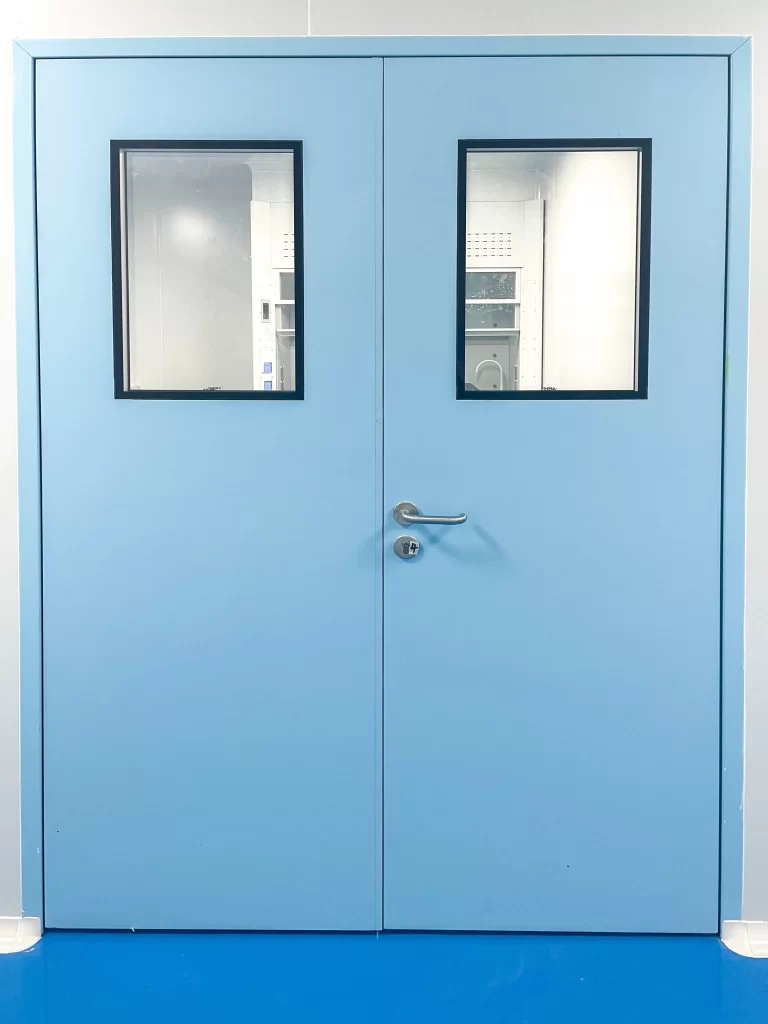

3.2 Vision Panels & Operational Monitoring Optimization

• Glazing Selection Matrix: Standard zones may use 5mm tempered glass; biosafety areas recommend laminated blast-resistant glass (SGP/PVB interlayer); fire egress routes require fire-rated glass with integrity ≥60 minutes.
• Anti-Condensation Engineering: For high-humidity or low-temperature environments, specify laboratory door with vision panel with double-glazed, argon-filled construction and interior anti-fog coating to prevent vapor condensation from obstructing visibility.
• Structural Integrity: Vision panel area should not exceed 25% of total door leaf area. Flush-mounted installation is mandatory; surface-mounted glazing beads create cleaning dead zones and compromise door leaf flexural strength.

3.3 Sealing Systems & Pressure Differential Control

laboratory door sealing system directly determines laboratory airtightness classification and HVAC energy consumption. Mainstream configurations include:

• EPDM Silicone-Foam Gaskets: Excellent aging resistance; suitable for routine clean zones.
• Full-Silicone Magnetic Seals: Operational range -60°C to 200°C with rapid reset; ideal for VHP sterilization cycles.
• Automatic Drop Seals: Engage upon door closure to block floor gaps; air leakage controllable to ≤0.5 m³/h @50Pa.
• Inflatable Seals: Deployed in negative-pressure/BSL-3 laboratories; inflatable bladders create zero-leakage physical barriers upon door closure.

3.4 Cleanability & Maintenance Protocols

• Topological Design: Door leaf-to-frame interfaces require continuous full-penetration welds with R-corner radius ≥3mm; hinges and handle bases must use concealed or recessed mounting to eliminate exposed fasteners and dust-trapping recesses.
• Disinfectant Compatibility: Prior to procurement, request a material compatibility matrix confirming panel, seal, and glazing bead resistance to 75% ethanol, quaternary ammonium compounds, peracetic acid, and VHP (typically requiring ≥5 years without visible yellowing or hardening).
• Automated Hardware: Antimicrobial handles, foot-pedal/IR-sensor actuation modules, and damped soft-close mechanisms significantly reduce contact-based contamination risk while aligning with GMP SOP requirements.

Ⅳ. Compliance Mapping & Audit Readiness

Laboratory doors are not merely engineering components—they are core deliverables within the regulatory documentation package. Correct selection can substantially accelerate IQ/OQ/PQ validation timelines.

• International Standard Alignment: Cleanrooms must comply with ISO 14644-1/4 (particle control and surface finish); pharmaceutical GMP must satisfy FDA 21 CFR Part 211 (cross-contamination prevention and cleanability); fire and life safety must align with NFPA 101/45 or EN 13501-1.
• Verification Documentation: Suppliers must provide third-party airtightness test reports (ASTM E283/EN 12207), material MSDS archives, fire/explosion-rated certification labels, and surface roughness certification (Ra ≤0.8μm).
• Audit-Friendly Design: Specifying pre-certified laboratory doors helps avoid FDA/EMA Form 483 observations triggered by material extractables, seal degradation, or structural dead zones—reducing compliance remediation costs.

Ⅴ. Procurement Checklist & Customization Implementation Framework

Before entering the procurement phase for new builds or expansions, we recommend locking technical boundaries using the following framework:

In biotech core zones, airlock doors for biotech labs with PLC interlock logic and status indicators must be deeply coupled with cleanroom pressure control systems to prevent pressure reversal. Selecting custom laboratory doors manufacturers over standard-product distributors ensures seamless integration of non-standard opening dimensions, specialized vision panel ratios, and automation control protocols. Where automatic sliding doors for cleanrooms are required for high-frequency logistics, verify motor ingress protection rating (IP54 or higher) and manual override mechanisms for power-failure scenarios.

Ⅵ. Conclusion & Call to Action (CTA)

Correctly specifying laboratory doors is a core engineering decision balancing biosafety, chemical protection, regulatory audit readiness, and total lifecycle operational costs. Minor deviations in door parameters may amplify post-commissioning into systemic risks: airflow instability, cross-contamination events, or audit non-conformities.
