E-ZONG Ceiling Diffusers for ASHRAE 62.1 Cleanroom Applications

I. Core Pain Points in Cleanroom Ventilation Compliance

In semiconductor manufacturing, biopharmaceutical production, and high-grade medical facility construction, ventilation system audits for cleanroom projects have become a critical milestone in engineering acceptance. Industry post-project reviews indicate that over 50% of compliance rectifications and rework cases stem not from equipment failing to meet rated specifications, but from systemic disconnects between airflow distribution design and on-site validation logic.

ASHRAE 62.1, while not a cleanroom-specific standard, establishes a non-negotiable baseline for indoor air quality (IAQ) and ventilation design in mixed-use buildings. Seamlessly integrating 62.1's requirements for ventilation effectiveness, contaminant dilution, and system maintainability with advanced cleanroom standards such as ISO 14644 and EU GMP is a critical technical threshold that designers, contractors, and O&M teams must cross.

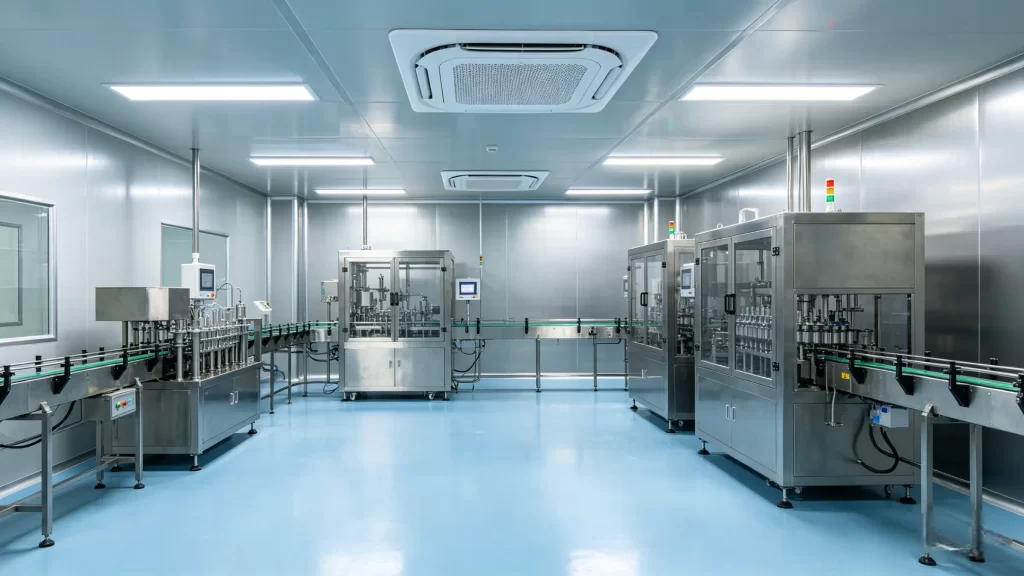

In actual project delivery, the ceiling diffuser is not merely an end-point for air distribution; it is a critical physical node linking ventilation effectiveness validation, IAQ contamination control, and system maintainability. Its flow field characteristics, material emission boundaries, and system interface protocols directly determine whether high air change rates can be achieved while precisely meeting ASHRAE 62.1 baseline metrics alongside layered cleanroom requirements. The following section breaks down the technical pathways for this terminal device in compliance mapping, on-site validation, and engineering selection, providing a practical implementation framework for cleanroom ceiling diffuser project design, commissioning, and auditing.

II. Standard Applicability Boundaries: Synergy Logic between 62.1 & Cleanroom Standards

A common misconception in engineering practice is treating ASHRAE 62.1 and cleanroom-specific standards as mutually exclusive or interchangeable. The core objective of 62.1 is to safeguard occupant health and IAQ, with key clauses focusing on outdoor air calculation, ventilation effectiveness (Ev), indoor contaminant control, and system commissioning procedures. In contrast, the ISO 14644 series emphasizes particulate classification and airflow visualization, EU GMP Annex 1 prioritizes sterility assurance and cross-contamination prevention, and ASHRAE 170 addresses pressure gradients and infection control in healthcare spaces.

In actual projects, 62.1 is not replaced by cleanroom standards but is applied concurrently as a foundational framework. Even if the critical cleanroom core meets ISO 7 air change rate requirements, airflow short-circuiting or dead zones can still result in an Ev value below 0.8 (per Appendix A), compromising IAQ compliance in adjacent offices, gowning rooms, or equipment spaces. As terminal components of the HVAC system, hvac diffuser and ceiling vent units must simultaneously deliver low-induction uniform air distribution and exhibit low material off-gassing to serve as the physical bridge between these two standard systems.

Key Takeaway: 62.1 is the baseline standard for ventilation and IAQ; cleanroom projects require layered compliance. E-ZONG ceiling diffuser designs are inherently compatible with multi-standard parallel validation. Engineering teams must define validation pathways during the drawing review phase.

III. E-ZONG Ceiling Diffuser Product Matrix & Model Recommendations

3.1 Core Product Series (Based on Official Categorization)

Note: Specific model naming conventions, dimensional specifications, and filter compatibility grades are available on the official E-ZONG product pages or by contacting technical support for the latest datasheets.

3.2 Key Parameter Quick-Reference Table (Engineering Selection Guide)

• Frame Material: 6063-T5 Aluminum Alloy (primary), optional 304/316L stainless steel fasteners
• Surface Finish: Electrostatic powder coating (RAL 9016 white standard), antimicrobial/anti-static options available
• Sealing: Dual EPDM/silicone gaskets, supports in-situ leak test interfaces
• Filter Compatibility: Standard H13-H14 (EN 1822), optional ULPA U15-U17 upgrade
• Interface Dimensions: Square (600×600 / 1200×600 mm modular), Circular (Φ300-600 mm), Linear custom sizes
• Pressure Drop: ≤15 Pa @ 0.45 m/s face velocity (typical cleanroom condition)
• Mounting Options: T-bar grid lay-in/concealed, suspended, or flush-mounted configurations

IV. Compliance Implementation Path: 62.1 Clauses → Product Features → Verification Methods

4.1 Ventilation Effectiveness (Ev) Compliance Strategy

Problem: Traditional air diffuser units often cause airflow short-circuiting, resulting in Ev < 0.8 (62.1 Appendix A threshold)

E-ZONG Technical Implementation:

• CFD-optimized flow-guiding geometry, diffusion angle controlled at 12–15° to prevent direct supply-to-return short-circuiting
• Micro-perforated/slot uniform distribution (perforation tolerance ≤±5%), ensuring face velocity Coefficient of Variation (COV) ≤ 0.15

Verification Method:

• ISO 14644-3 airflow visualization (smoke/particle tracing) + multi-point velocity scanning (25-point grid)
• Tracer gas decay method (SF₆/CO₂) for field-measured Ev ≥ 0.9. Third-party test reports should include test conditions (ambient: 23±2°C, 50±10% RH).

4.2 Material Compliance & IAQ Control (62.1 Section 6.2)

Low Off-Gassing Requirements:

• Coatings pass ASTM D5116 small-chamber testing, TVOC emission < 50 μg/m³·h
• Zero-silicone manufacturing process to eliminate semiconductor AMC contamination risks

Cleanability Design:

• Surface roughness Ra ≤ 0.8 μm, compatible with IPA/H₂O₂ in-situ wiping
• Modular quick-release structure limits cleanroom exposure time to <3 minutes during maintenance

4.3 System Maintainability & Commissioning Readiness (62.1 Section 7)

TAB Commissioning Support:

• Integrated ceiling diffuser with damper configuration, balancing accuracy ±3%, enables rapid airflow calibration
• Differential pressure indicator + filter resistance monitoring port for real-time system status feedback

Integrity Validation Requirements:

• Diffuser-filter frame interface supports 100% PAO in-situ aerosol scanning, leak localization precision ±5 mm
• DQ/IQ/OQ/PQ documentation templates provided, compliant with FDA 21 CFR Part 11 data integrity standards

V. Typical Application Scenarios & Reference Test Data

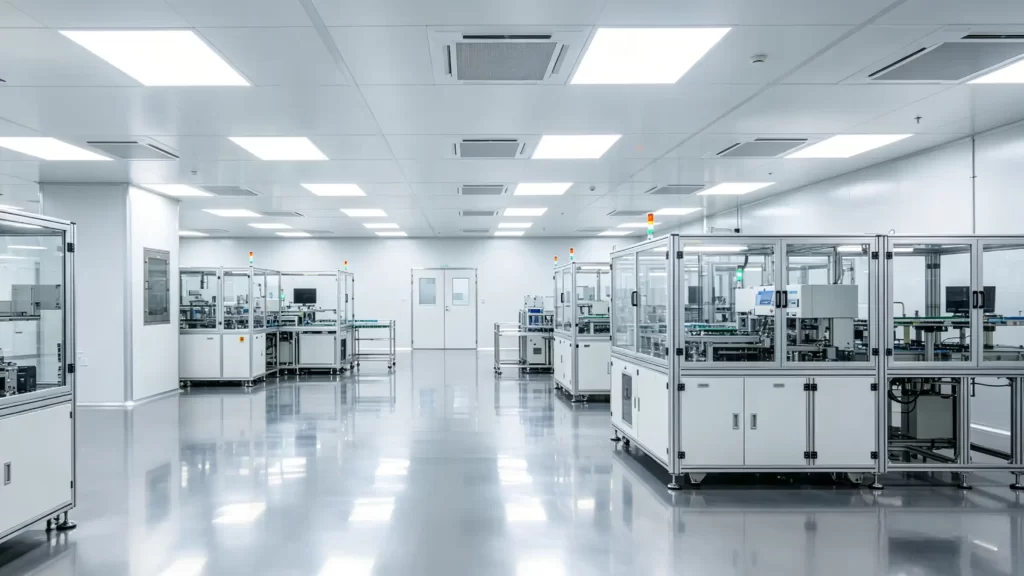

5.1 Semiconductor Wafer Fab (ISO Class 4)

Configuration: Square Aluminum Alloy Series + ULPA U15 Filter Test Data (Third-party lab per ASTM E2890):

• Face velocity: 0.45±0.05 m/s, COV=0.12
• Recovery time (100→10 pcs/m³): 8.2 min (ISO 14644-3 method)
• PAO leak scan: 0 leak points (scan speed 5 cm/s) Compliance Output: Simultaneously meets ASHRAE 62.1 Ev≥0.9 + SEMI F21 AMC control requirements

5.2 Biopharmaceutical Filling Zone (ISO 7 / EU GMP Grade A Background)

Configuration: Medical Antimicrobial Series + Antimicrobial Coating Test Data:

• Airflow pattern: Unidirectional downward flow, zero eddies/recirculation (smoke test video archived)
• Microbial settle plates: ≤1 CFU/4h (Φ90 mm petri dish)
• Coating sterilization resistance: ≥500 H₂O₂ vapor cycles with zero delamination Compliance Output: Passes EU GMP Annex 1 audit + ASHRAE 62.1 IAQ program validation

5.3 Hospital PIVAS (Pharmacy Intravenous Admixture Services)

Configuration: Linear Slot Series + Venturi Airflow Valve Test Data:

• Pressure cascade: Clean zone → Buffer → Corridor ΔP=15/10/5 Pa, fluctuation ≤±2 Pa
• Outdoor air ratio: Calculated per 62.1 Section 6, field-measured 22% (design target 20±5%)
• Acoustics: ≤45 dB(A) @ 1.5m (meets ASHRAE Handbook healthcare space guidelines) Compliance Output: Meets ASHRAE 170 medical ventilation standards + 62.1 cross-contamination control requirements

VI. ceiling diffuser Selection & Procurement Decision Guide

6.1 Four-Step Selection Methodology

Step 1: Determine cleanroom classification → Step 2: Calculate required airflow/face velocity → Step 3: Match model/quantity → Step 4: Verify compliance interfaces Selection Support: Request supplier-provided technical datasheets and CFD simulation services. Input room volume, classification, and ACH to receive layout optimization. When comparing square ceiling diffuser vs. round ceiling diffuser layouts, always verify pressure drop against ceiling grid modular dimensions.

6.2 Procurement Pitfall Checklist (Frequently Cited Audit Red Flags)

Mandatory Requirements:

• Third-party certified test reports (self-certification unacceptable): must include air diffusers airflow uniformity, leakage rate, and material emission data
• Contractual acceptance criteria: e.g., "100% PAO scan pass rate, leak localization precision ±5 mm"
• Compliance documentation package: DQ/IQ/OQ templates, CFD reports, material certificates (aligned with 62.1 Appendix C)

Risk Mitigation:

• Avoid low-price traps: hvac vents priced >30% below market average require rigorous verification of actual filter grading and sealing process
• Guard against parameter inflation: Always demand stated test conditions and ambient parameters to ensure data comparability
• Confirm lead times: Cleanroom projects operate on tight schedules; finalize delivery windows and logistics with commercial teams upfront

VII. Engineering Implementation Process: Full-Cycle Compliance from Design to Audit

7.1 Design Phase (Proactive Risk Mitigation)

• Implement CFD airflow simulation to model ceiling diffuser distribution, output predicted Ev values and layout optimizations
• Specify in tender documents: Equipment must support dual acceptance ("62.1 Ev testing + ISO 14644-3 airflow visualization")
• Annotate critical parameters on drawings: Layout density, mounting elevation, supply air temperature differential, communication protocols (e.g., BACnet/Modbus)

7.2 Commissioning Phase (TAB Critical Actions)

• Air balancing: Each supply air diffuser measured airflow deviation ≤±10% from design
• Pressure verification: Stable gradient from clean to non-clean zones, fluctuation ≤±5 Pa
• Airflow visualization: Smoke test video archived and signed off; confirm zero short-circuiting or dead zones
• Integrity testing: PAO scan report + remediation log (if applicable)

7.3 O&M Phase (Sustained Compliance)

• Digital monitoring: Optional BMS interface modules for real-time return air diffuser vs. supply-side ΔP/filter resistance tracking with automated alarm triggers
• Predictive maintenance: Generate filter replacement/seal inspection schedules based on actual operating conditions, replacing fixed-cycle teardowns
• Audit readiness: Maintain a centralized compliance data repository (historical test records, maintenance logs) aligned with FDA/EMA data integrity requirements

VIII. Conclusion: Long-Term Value Built on Compliance

The true cost of cleanroom projects often lies hidden in rework, process deviations, and compliance penalties following audit failures. As the terminal hub of airflow distribution, ceiling diffuser selection and validation logic directly dictate ventilation effectiveness and IAQ compliance rates. By deeply integrating ASHRAE 62.1 baseline requirements with advanced cleanroom standards from day one, engineering teams can systematically eliminate design-stage risks and achieve "build once, maintain lifecycle compliance."

For teams executing new cleanroom construction or retrofits, it is strongly recommended to explicitly define Ev thresholds, PAO scanning protocols, and data archiving formats in technical specifications. Prioritize hvac linear diffuser solutions backed by comprehensive third-party validation and engineering support. As a manufacturer specializing in cleanroom aluminum profiles and air distribution systems, E-ZONG delivers verifiable, traceable technical support through systematic flow optimization, stringent material control, and integrated digital interfaces, ensuring compliant, audit-ready project delivery.
